SL 608 Outdoor High Lifter

Available for Hire. Rates available on request. Please note these units are hired out WITH an operator.

For outdoor and indoor use. The SL 608 Outdoor High Lifter is a powerful lift, which is suitable for lifting both in and out of doors, e.g. on construction sites. Lifts up to 608kg.

Features

• Off road with front-wheel drive
• Manoevrable with dual rear wheels
• Foam filled tyres
• Self-driven
• Electronic brake
• Lifting height 3700 mm (centre of yoke)
• 2 vacuum circuits with 2 pumps
• 4 Suction pads Ø 400 mm
• Ergonomic operation handle
• Waterproof according to ip65

Technical data

• Weight 930 kg
• Height 1530 mm
• Width (min) 840 mm
• Length (min) 2285 mm
• Extension of arm 700 + 900 mm
• Tip from horizontal 40Ëš back / 100Ëš forward
• Speed regulation Stepless high/low
• Sideshift 100 mm
• Vacuum system 2 circuits
• Lifting height mounting 4080 mm
• Charging voltage 230 volt
• Integrated charger Victron Energy
• Charging time Approx 8 hours
• Battery(2 x 12v) 24 volt 2 x 105 A
• Running period Approx 20 hours
• Front-wheel drive 1200 Watt - AC
• Brake Electronic
• Suction pads 4 unit Ø 400 mm

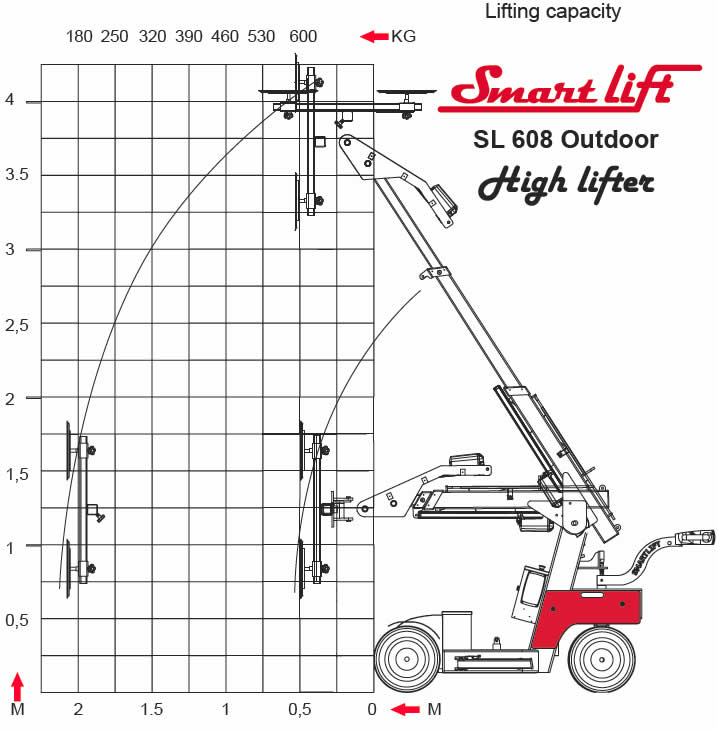

• Lifting capacity arm in/extended (1600 mm) 608 kg / 150 kg

In addition to the electrical extension, the carrying arm is fitted with a manual extension arm to provide extra long reach.

The lift has 100 mm sideshift for accurate adjustment when fitting the window

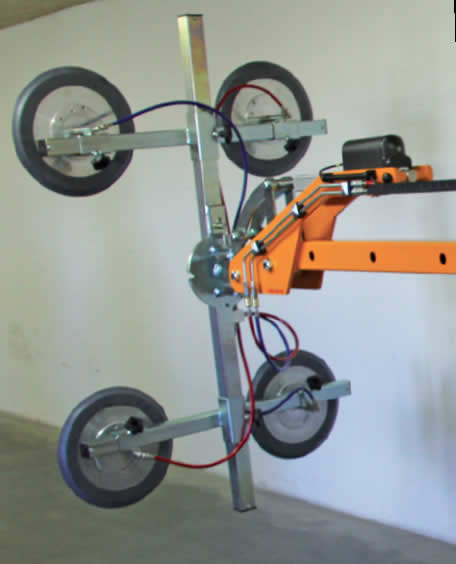

The vacuum system is separated into two vacuum circuits for highest security. Showing vacuum circuitswith blue and red vacuum hoses

The yoke has movements in all directions.

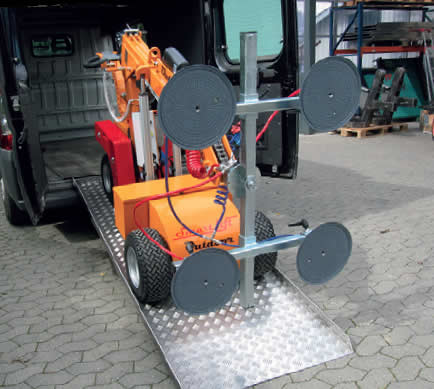

The Smartlift is easily transported in a van or on a trailer

The lifting head has two settings, adjusted by means of two holes for the locking bolt. The lifting head can therefore be adjusted to tilt more towards the ceiling or floor.
