SL 380 Outdoor High Lifter

Available for Hire. Rates available on request. Please note these units are hired out WITH an operator.

High lift has a longer reach and higher lifting height. The SL 380 Outdoor High Lifter is designed for jobs that require additional reach and lifting height. The High Lifter easily handles jobs across basement shafts and flower beds and replacement of windows in end walls etc. The long arms of the lifting device easily reach heights where panes have be transported across e.g. fences and easily across obstacles such abasement shafts, flower beds etc

Features

• Two vacuum circuits with two pumps
• Off road with front-wheel drive and big wheels with electronic brake
• Manoevrable with dual rear wheels
• Lifting height 2800 mm (centre of yoke)
• Ergonomic operation handle
• Waterproof according to ip65
• Foam filled tyres

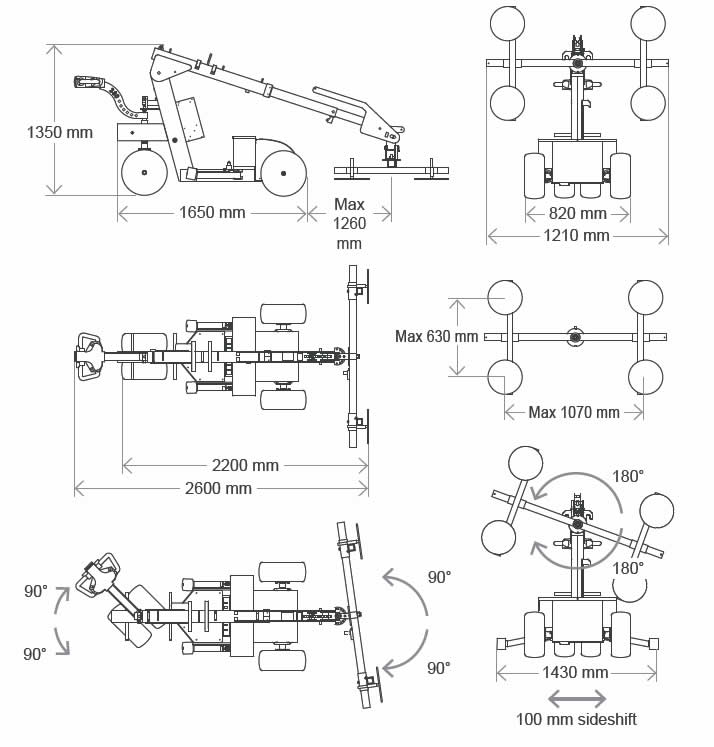

Technical data

• Weight 680 kg
• Height 1350 mm
• Width (min) 820 mm
• Length (min) 2200 mm
• Extension of arm 600 + 600 mm
• Tip from horizontal 45° back og 90° forward
• Speedregulation Stepless high /low
• Sideshift 100 mm
• Vacuum system 2-circuits
• Lifting height 3200 mm
• Chargingvoltage 230 volt
• Integrated charger Victron Energy
• Chargingtime Approx 8 hours
• Battery (2 x 12v) 24 volt 2 x 105 A
• Runningperiod Approx 30 hours
• Front-wheel drive 1200 Watt - AC
• Brake Elektronisk
• Suction pads 4 unit Ø 300 mm
• Automatic suction 2 vacuum pumps

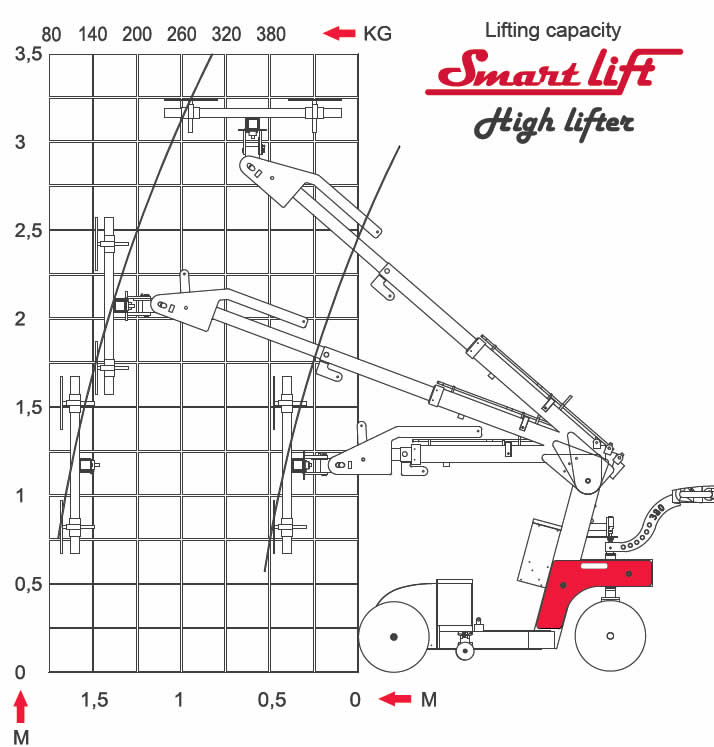

• Lifting capacity arm in/extended (1200 mm) 380 kg /100 kg

The long arms of the lifting device easily reach heights where panes have be transported across e.g. fences.

The long arm reaches easily across obstacles such as basement shafts, flower beds etc.

The Smartlift is easily transported in a van or on a trailer

The Smartlift can be shifted sideways for precision adjustment during installation jobs.

The lifting device has a multifunctional swivel head.

The wide tyres make the lifting device suitable for difficult off-road jobs.
